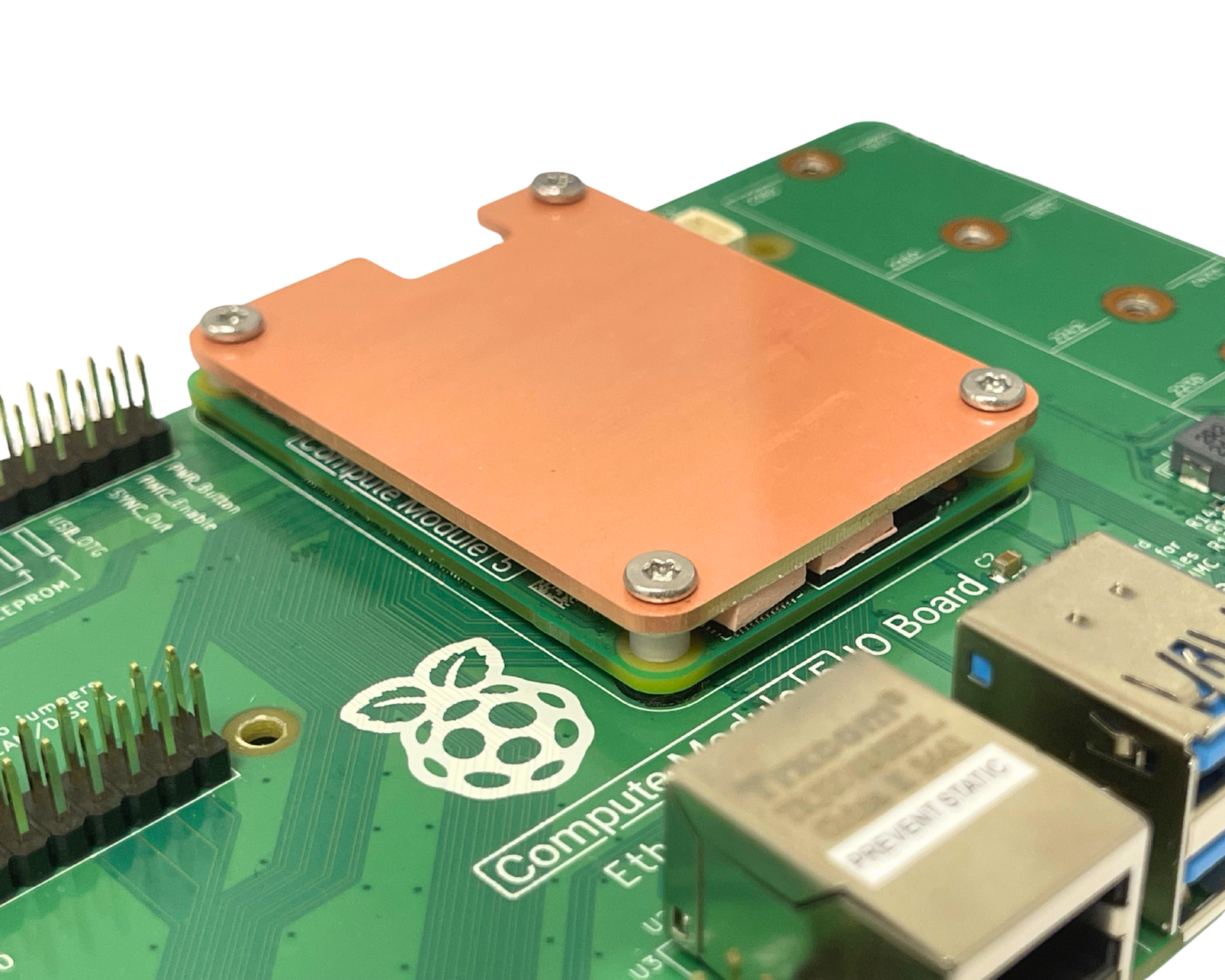

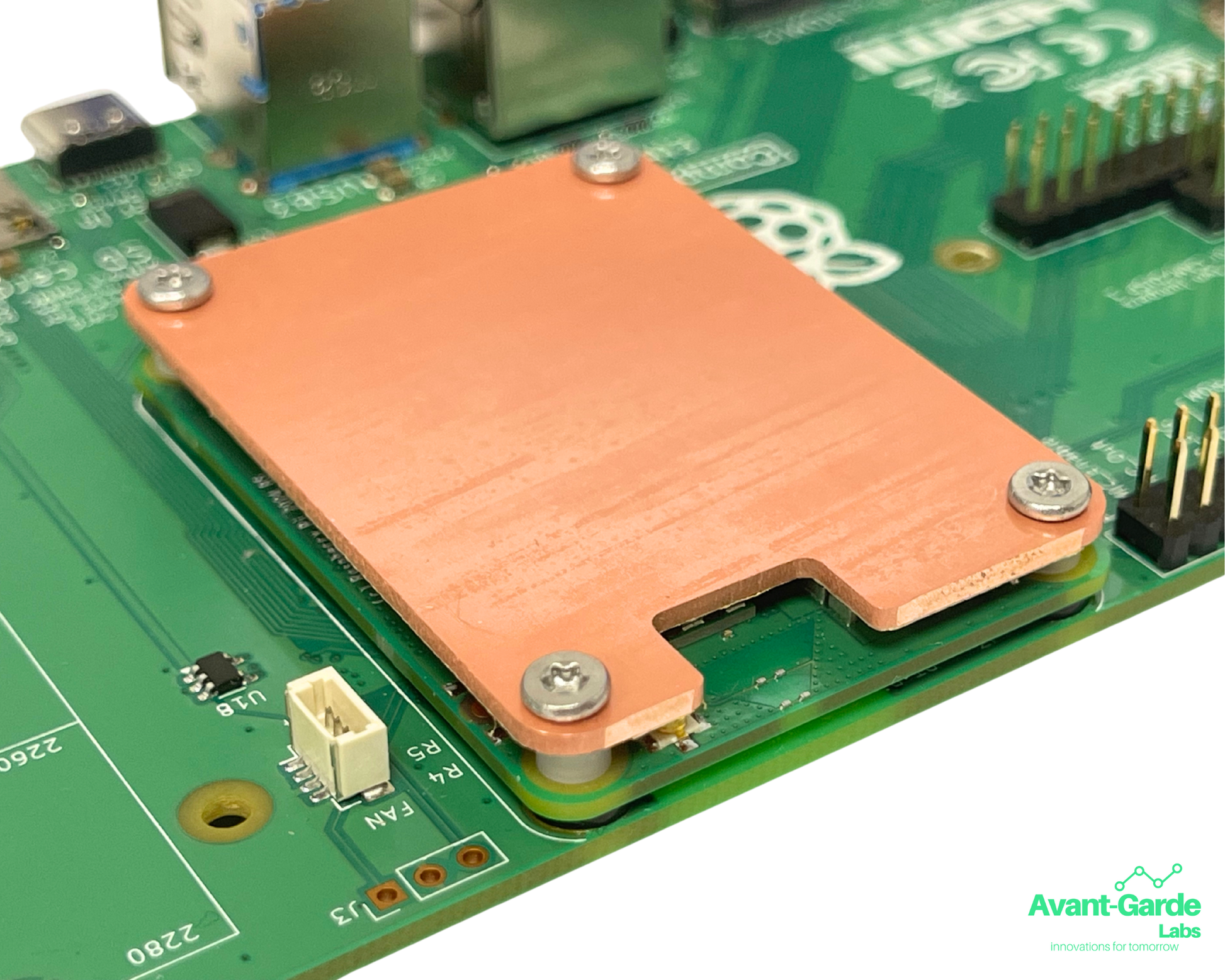

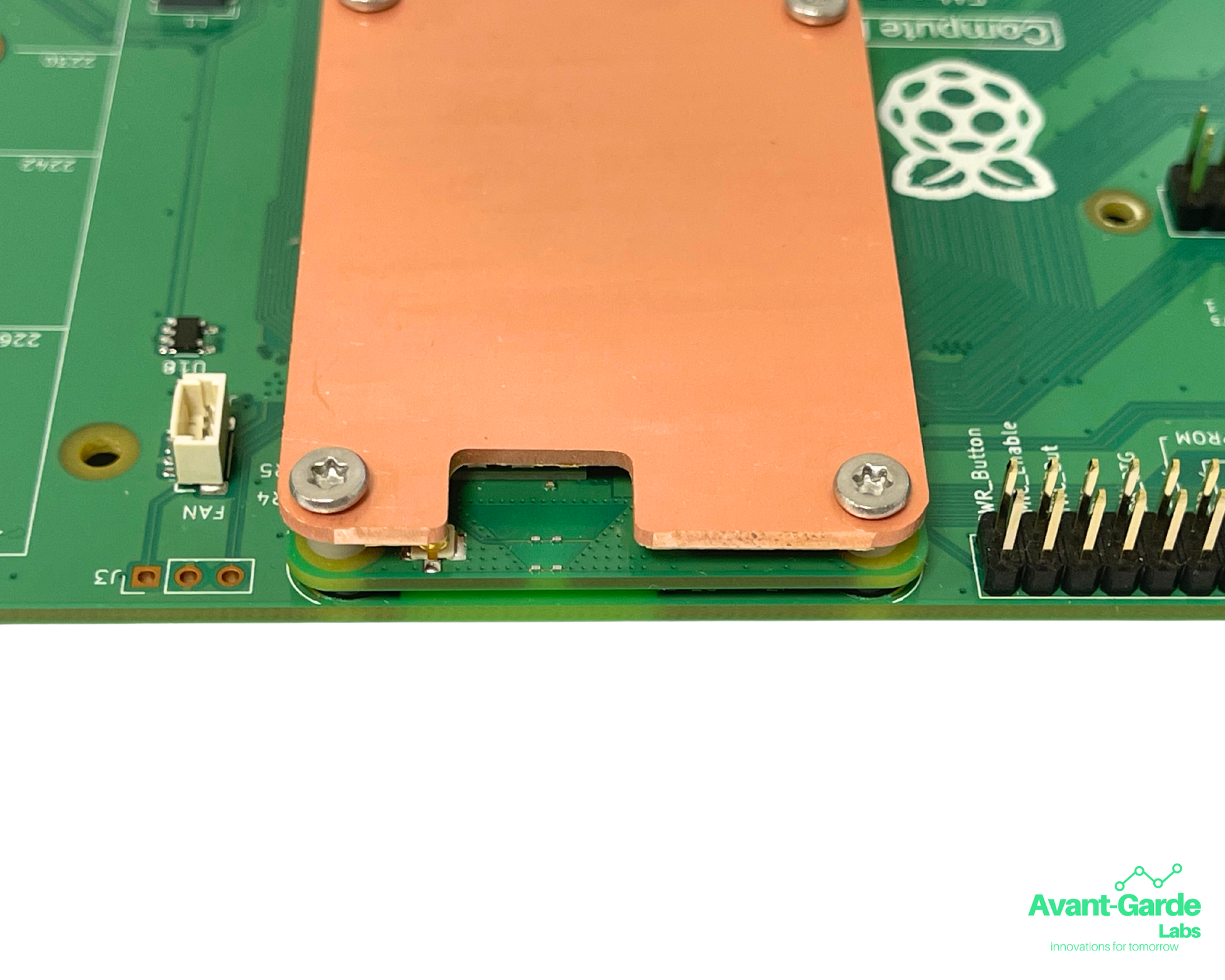

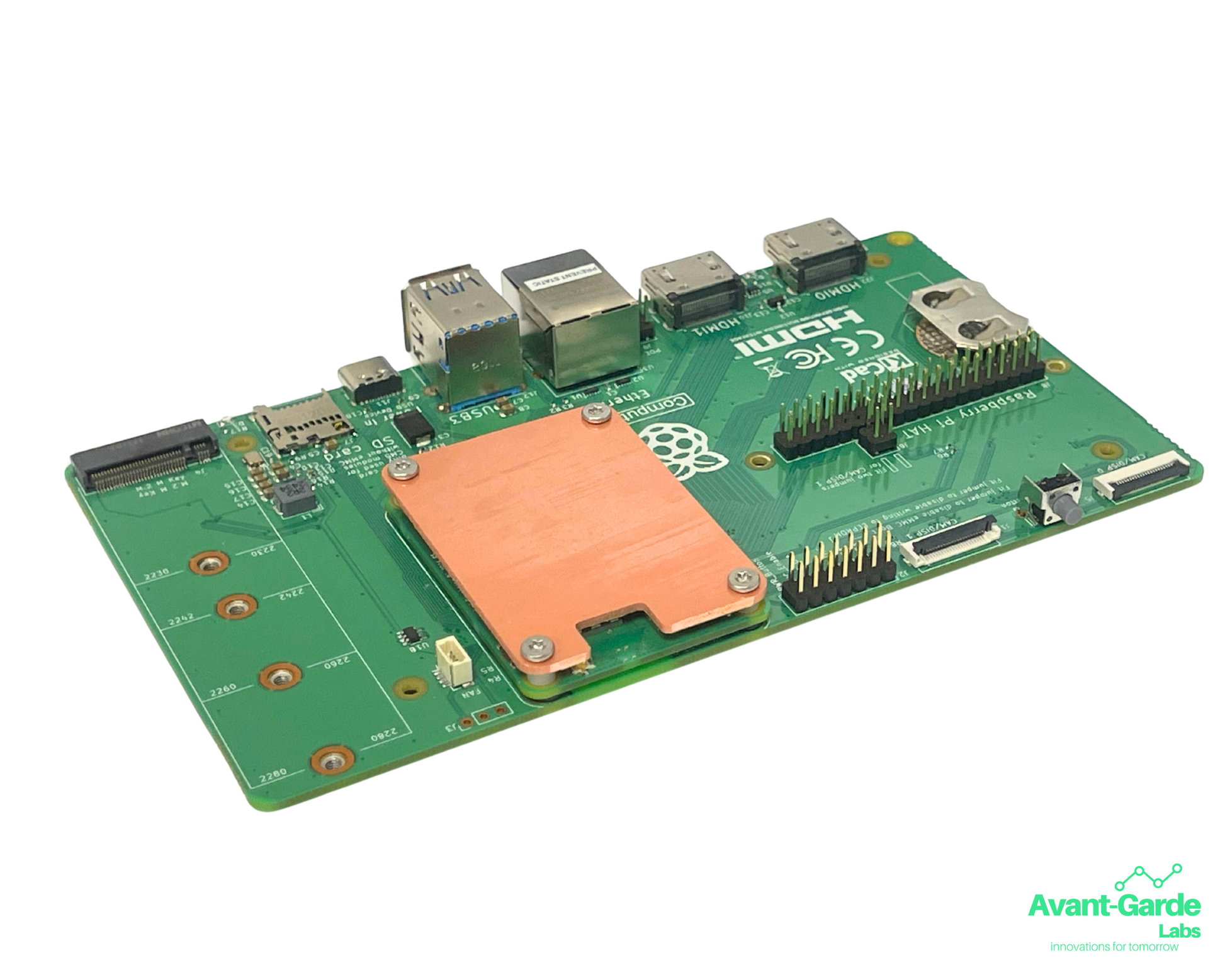

The Raspberry Pi CM5 Copper Heatsink Heat Spreader is crafted from pure copper to efficiently dissipate heat in a low profile. Its superior conductivity and thermal mass helps maintain stable operating temperatures, making it ideal for compact devices.

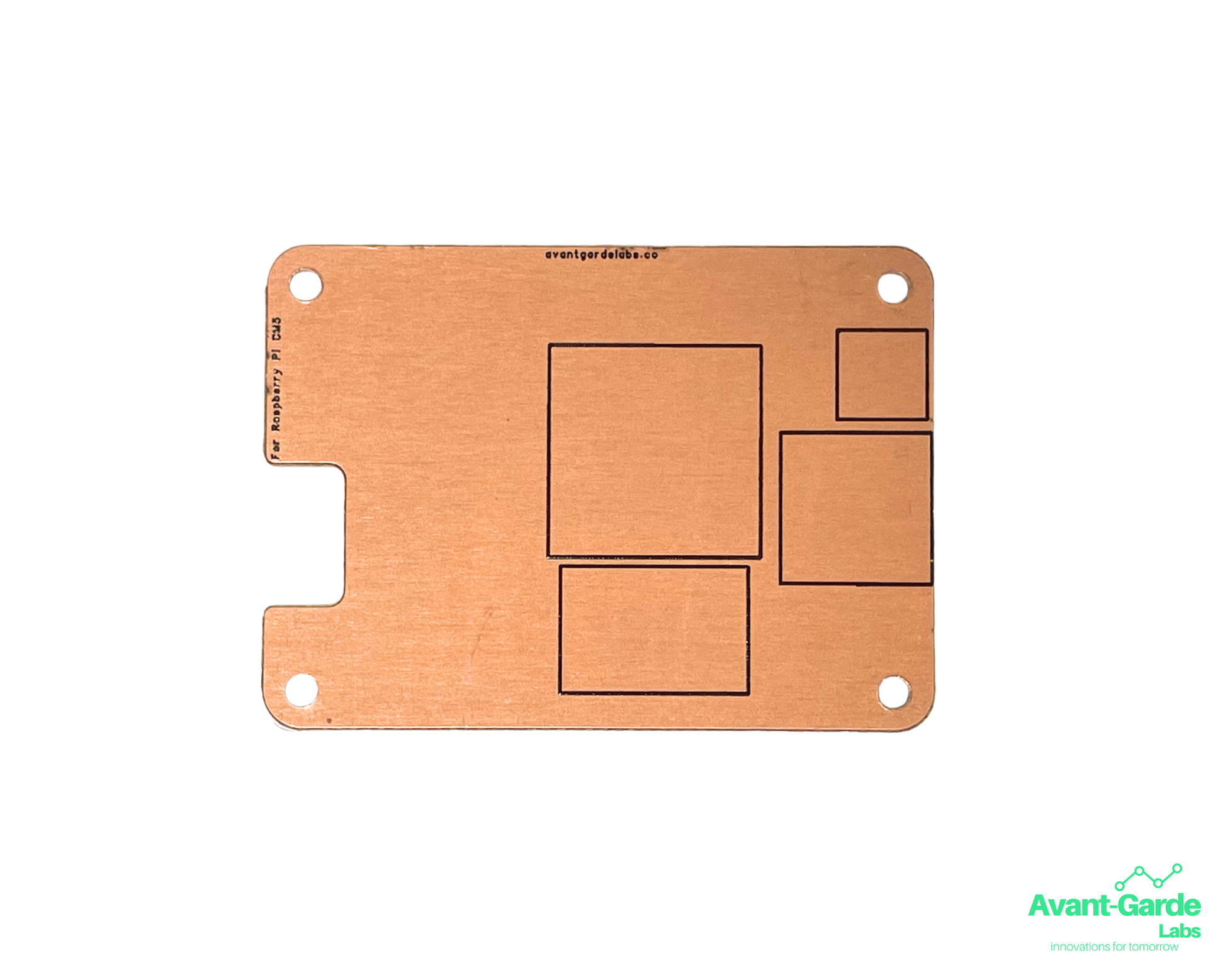

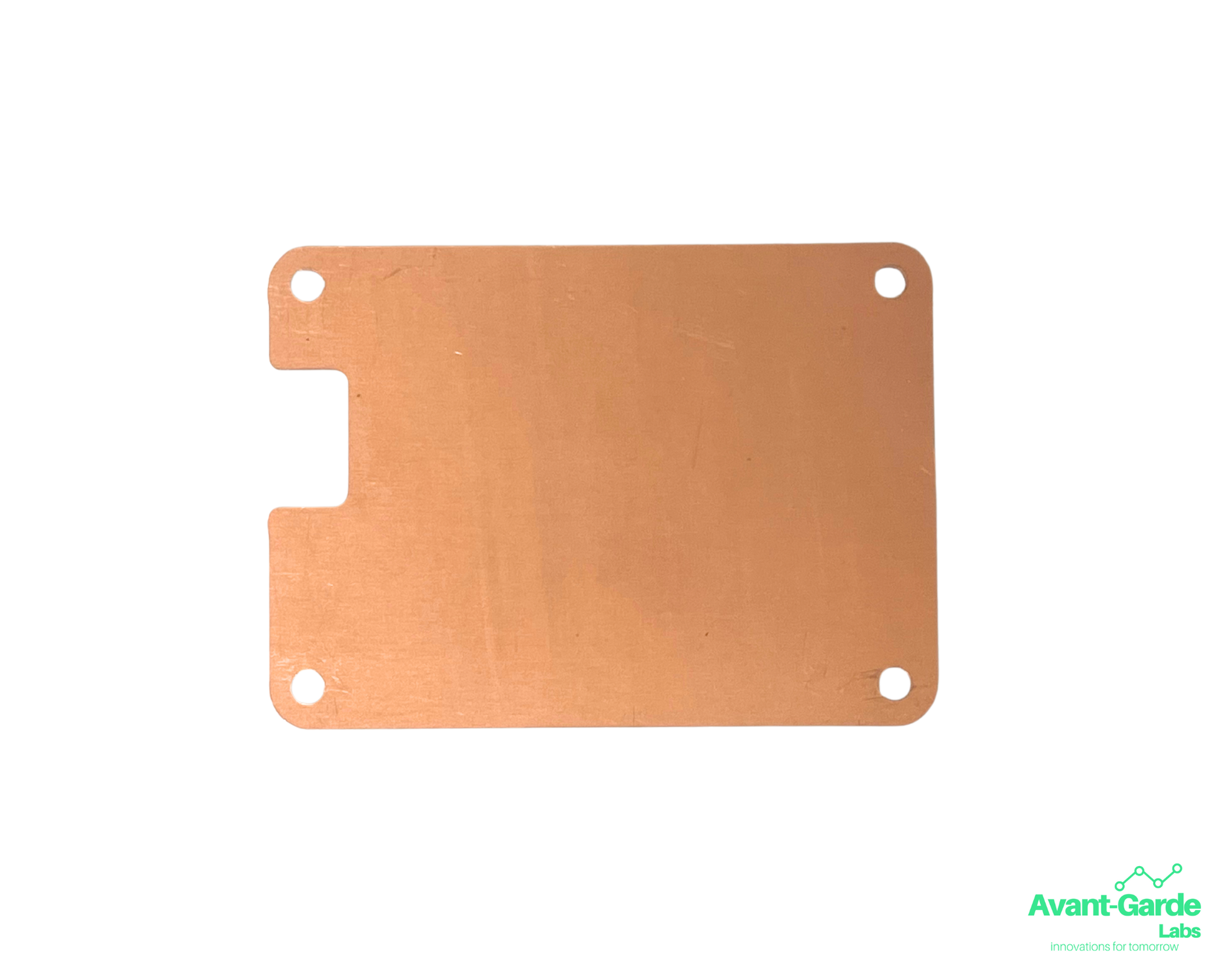

The heatsink is made of 1.6mm copper and includes all hardware, thermal pads, and nylon spacers
As tested the following was determined:
5°C lower once installed in closed air enclosure. Significantly greater with open air.
Prevents thermal throttling when workload is at or below 50% CPU utilization.
Has a high thermal mass stabilizing temperatures.
This is ideally implemented into a thin device, product or project where increasing thermal contact area is needed to spread thermal energy to the body of an enclosure.
Whats Included:
1x Pure Copper Heatsink
4x Thermal Pads

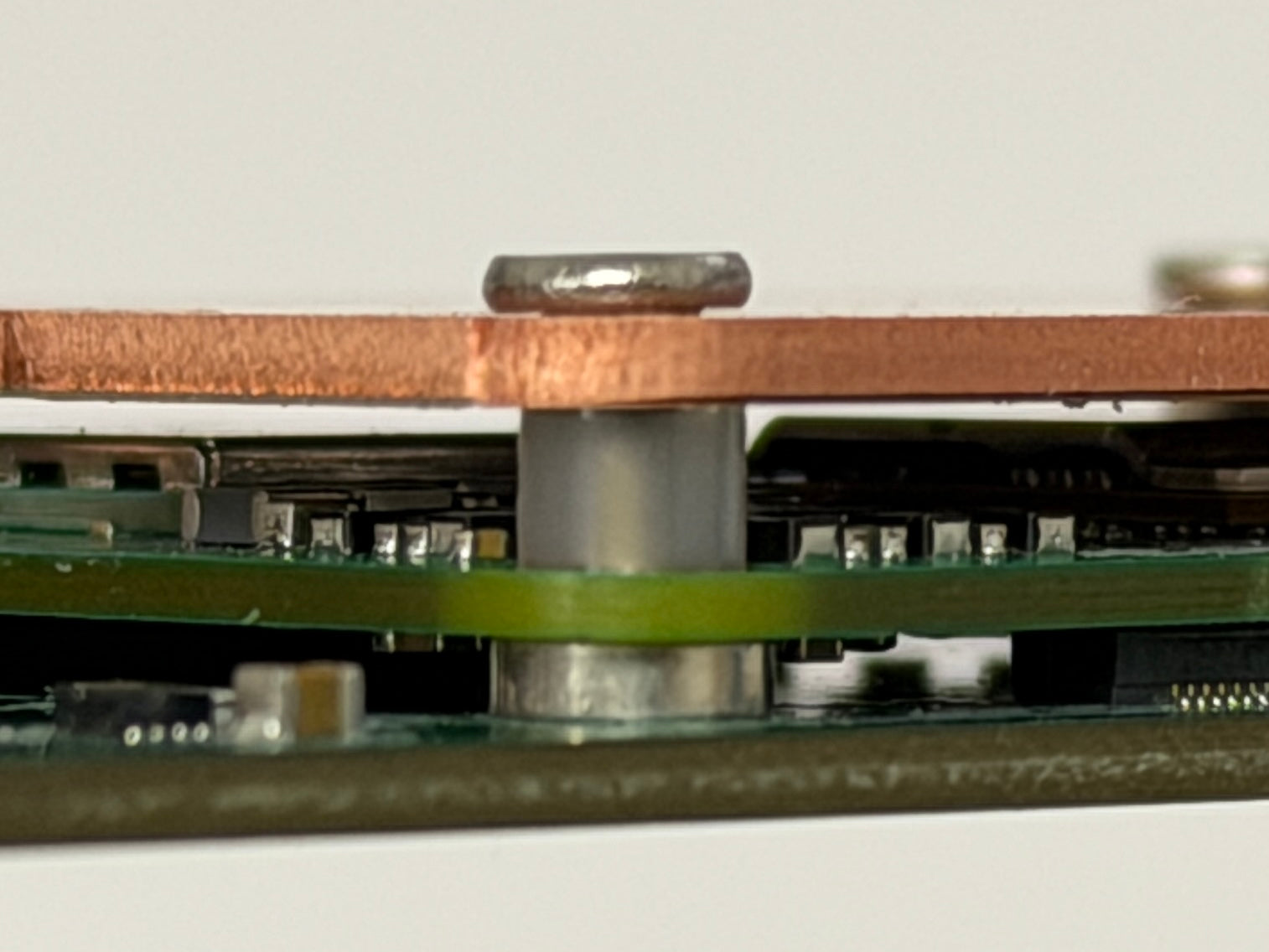

WITH Surface-Mount Threaded Standoffs
4x M2.5 3mm Board to Heatsink Nylon Spacers
4x M2.5 8mm Torx Screws
OR

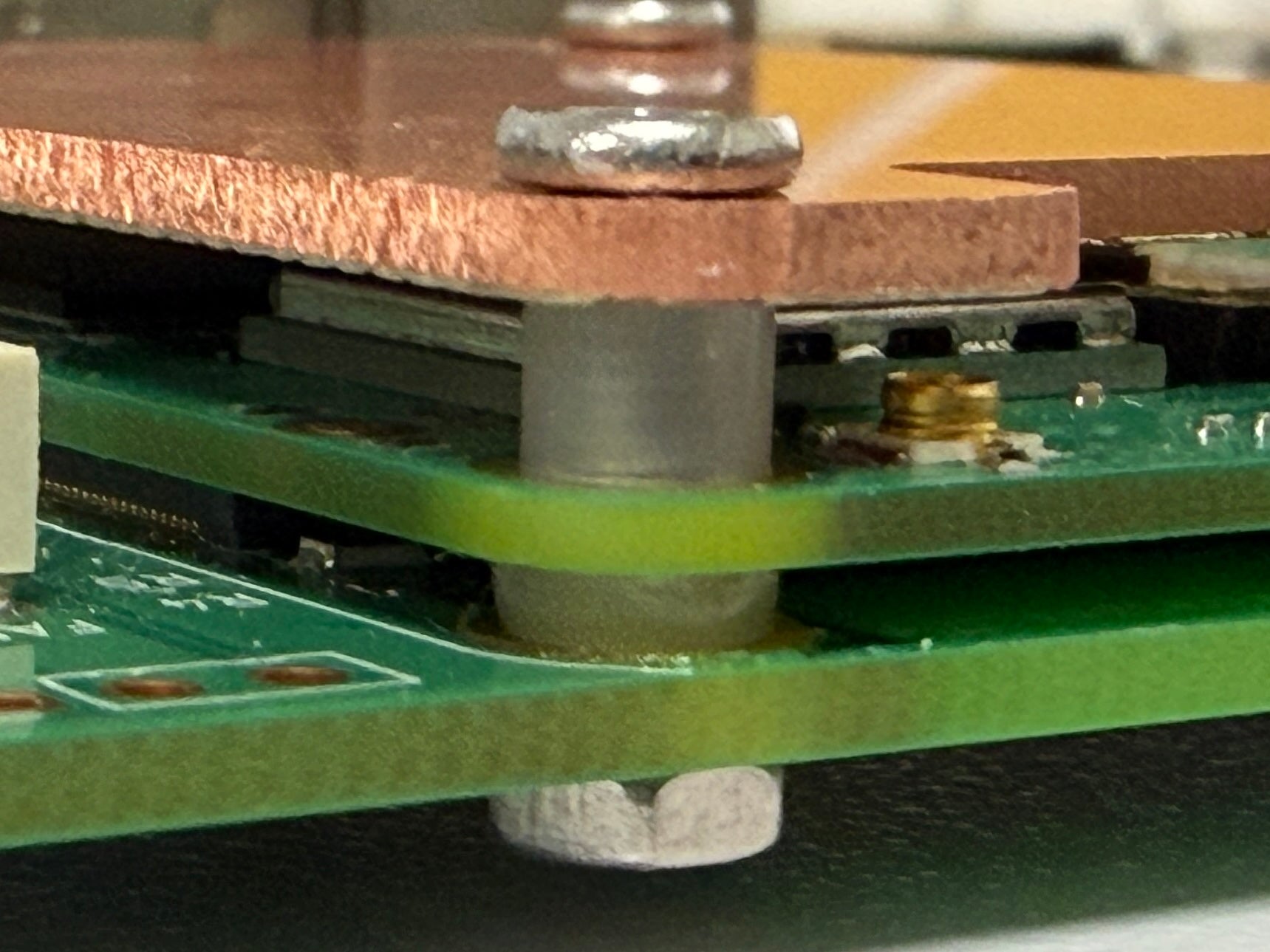

WITHOUT Surface-Mount Threaded Standoffs
4x M2.5 3mm Board to Heatsink Nylon Spacers
4x M2.5 1.5mm Board to Board Nylon Spacer
4x M2.5 11mm Torx Screws
4x M2.5 Nuts
Please contact us about bulk pricing and if custom heatsink design is desired via: theavantgardelabs@gmail.com
